Ver Mesas |
  |

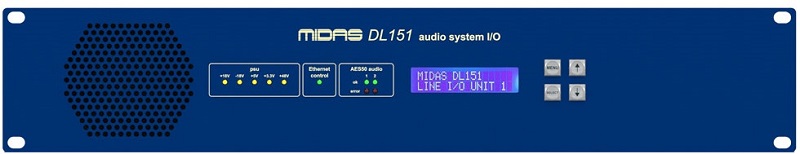

| 24 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Supports dual redundant AES50 networks Features Neutrik etherCON* AES50 network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

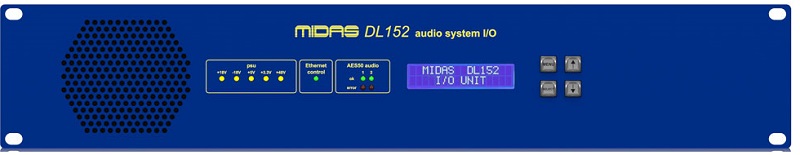

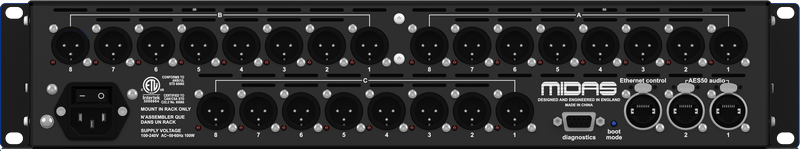

| DL152 |
  |
| 24 electronically balanced low impedance line level outputs Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Supports dual redundant AES50 networks. Features Neutrik etherCON* AES50 network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |
| DL153 |
  |
| 16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power 8 electronically balanced low impedance line level outputs Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Supports dual redundant AES50 networks Features Neutrik etherCON* AES50 network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

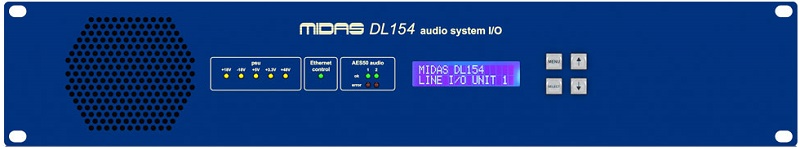

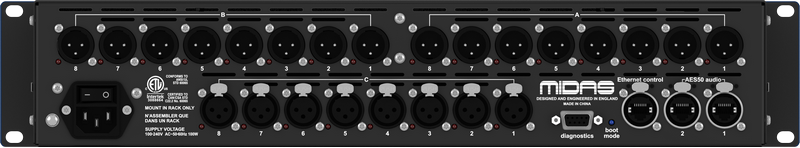

| DL154 |
  |
| 8 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power 16 electronically balanced low impedance line level outputs Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Supports dual redundant AES50 networks Features Neutrik etherCON* AES50 network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

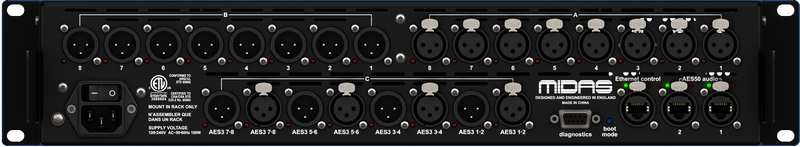

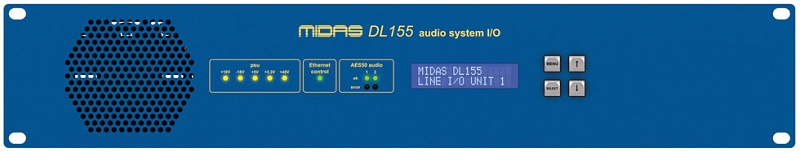

| DL155 |
  |
| 8 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power 8 AES3 (AES/EBU) digital inputs and outputs 8 electronically balanced low impedance line level outputs Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Supports dual redundant AES50 networks Features Neutrik etherCON* AES50 network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

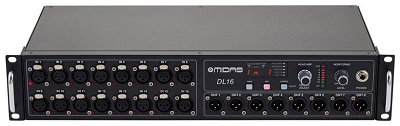

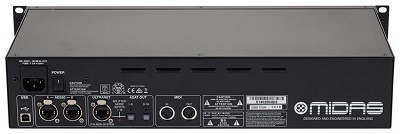

| DL16 |
  |
| 16 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power 8 electronically balanced low impedance line level outputs ULTRANET personal monitoring system connectivity for in-ear applications Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors Remote operation via shielded CAT5e cable up to 330 ft / 100 m length All settings programmable from front panel controls or console Status indicator LEDs on front panel Headphones output assignable to any of the inputs or outputs for on-stage monitoring MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices Features Neutrik etherCON* AES50 and ULTRANET network ports Rugged 2U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

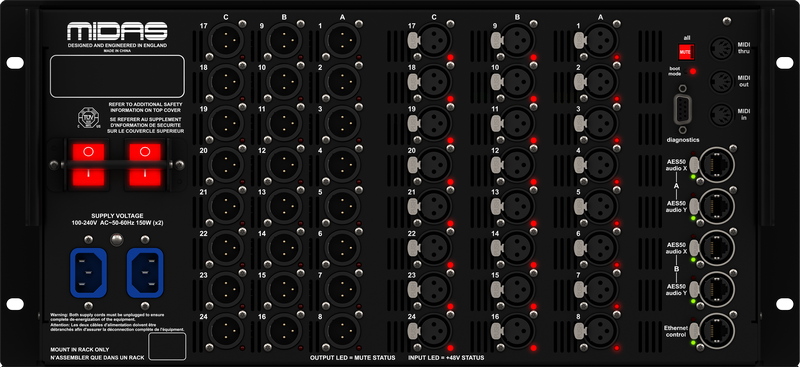

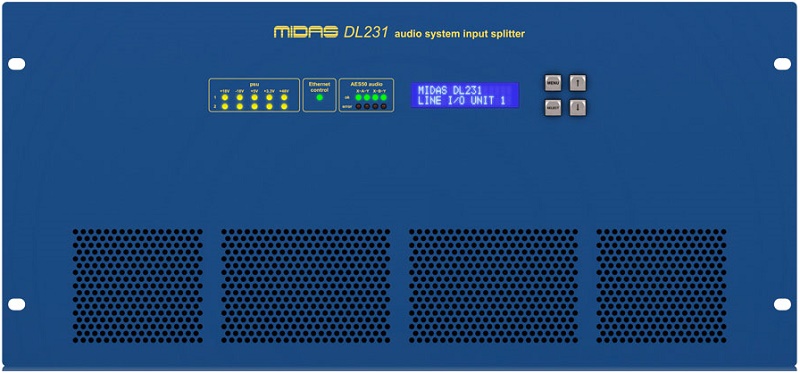

| DL231 |
  |
| 2 award-winning MIDAS microphone preamplifiers per input with switchable +48 V phantom power 2 dual redundant AES50 network ports with independent phase-locked loop synchronisation 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports Remote operation up to 100 m via CAT5/5e cable Selectable 96 kHz or 48 kHz sample rate operation All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel MIDI In, Out and Thru connectors Features Neutrik etherCON* AES50 network ports Rugged 5U rackmount chassis for durability in portable applications Dual redundant auto-ranging universal switch-mode power supplies 3-Year Warranty Program* Designed and engineered in England |

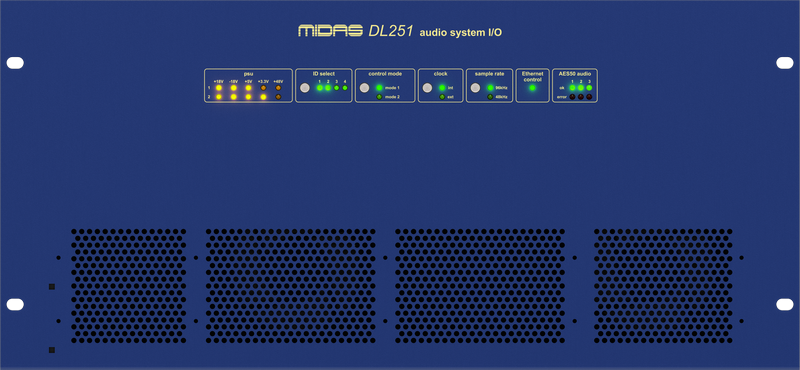

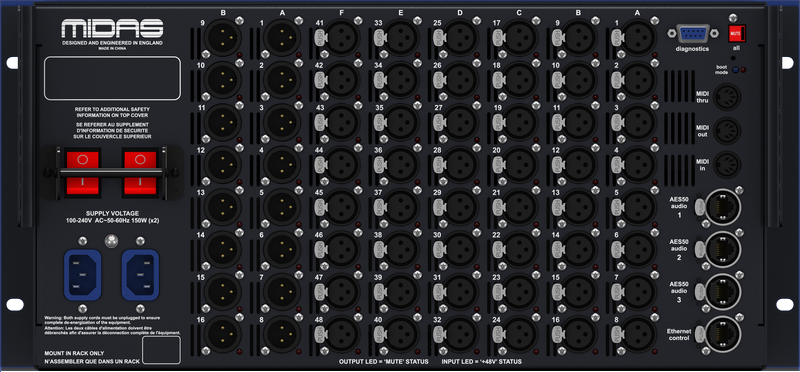

| DL251 |
  |
| 48 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power 16 actively balanced low impedance line level outputs Selectable 96 kHz or 48 kHz sample rate operation Remote operation up to 100 m via CAT5/5e cable All settings programmable from front panel controls or console PSU status indicator LEDs and configuration switches on front panel 3 AES50 network ports for redundant connections MIDI In, Out and Thru connectors Features Neutrik etherCON* AES50 network ports Rugged 5U rackmount chassis for durability in portable applications Dual redundant auto-ranging universal switch-mode power supplies 3-Year Warranty Program* Designed and engineered in England |

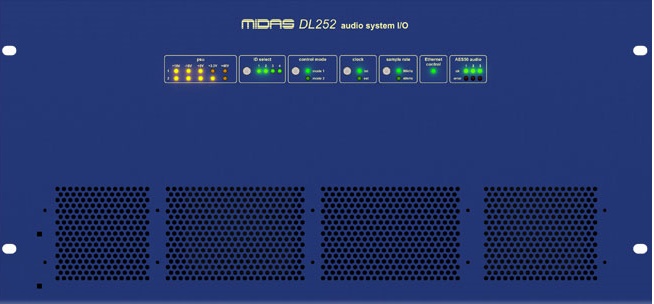

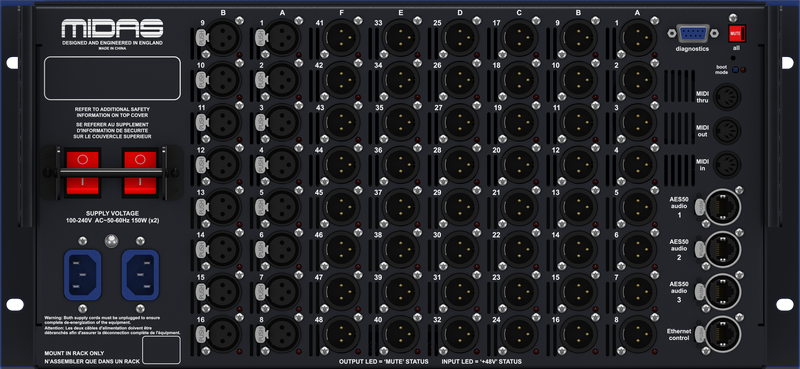

| DL252 |
  |
| 16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power 48 actively balanced low impedance line level outputs Selectable 96 kHz or 48 kHz sample rate operation Remote operation up to 100 m via CAT5/5e cable All settings programmable from front panel controls or console PSU status indicator LEDs and configuration switches on front panel 3 AES50 network ports for redundant connections MIDI In, Out and Thru connectors Features Neutrik etherCON* AES50 network ports Rugged 5U rackmount chassis for durability in portable applications Dual redundant auto-ranging universal switch-mode power supplies 3-Year Warranty Program* Designed and engineered in England |

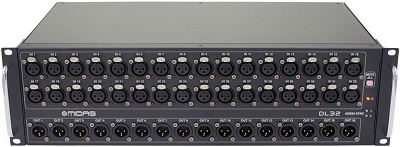

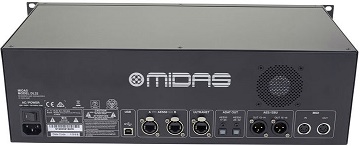

| DL32 |
  |
| 32 award-winning MIDAS PRO microphone preamplifiers with switchable 48 V phantom power 16 electronically balanced low impedance line level outputs ULTRANET personal monitoring system connectivity for in-ear applications Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required Automatic AES50 stage-split mode when connected between MIDAS M32 Series FOH and monitor consoles Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs Remote operation via shielded CAT5e cable up to 330 ft / 100 m length Mute All function for quietly patching any inputs on stage MIDI In/Out for bidirectional communication between MIDAS M32 Series console and on-stage MIDI devices Features Neutrik etherCON* AES50 and ULTRANET network ports Rugged 3U rackmount chassis for durability in portable applications Auto-ranging universal switch-mode power supply 3-Year Warranty Program* Designed and engineered in England |

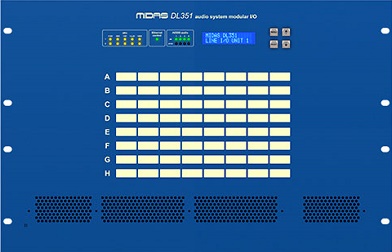

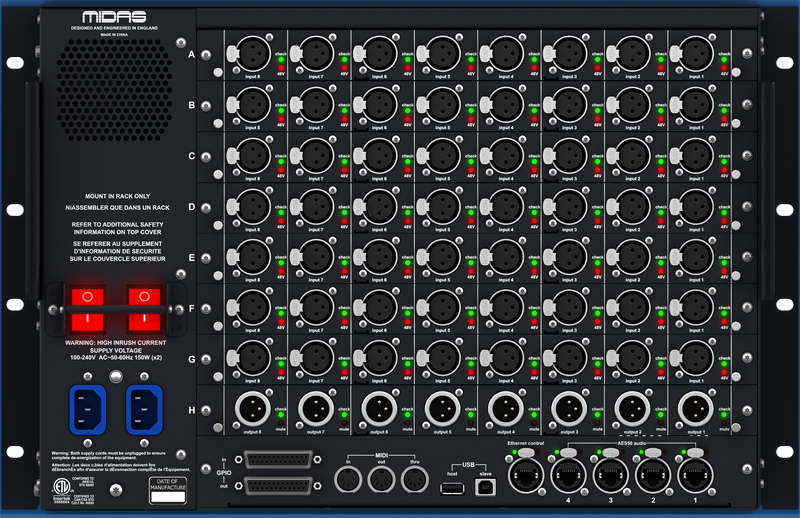

| DL351 |
  |
| Modular stage box accepts 8 DL4 series I/O cards Up to 64 audio inputs and 64 audio outputs 24 bit audio operation with 96 kHz sample rate Remote operation up to 100 m via CAT5/5e cable All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel 4 AES50 network ports for redundant connections Two GPIO 25-pin D-type opto-isolated connectors for external device control MIDI In, Out and Thru connectors Features Neutrik etherCON* AES50 network ports Rugged 7U rackmount chassis for durability in portable applications Dual redundant auto-ranging universal switch-mode power supplies 3-Year Warranty Program* Designed and engineered in England |

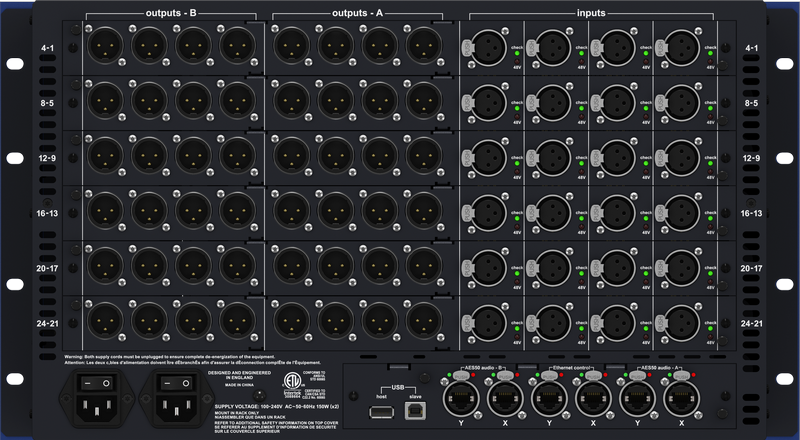

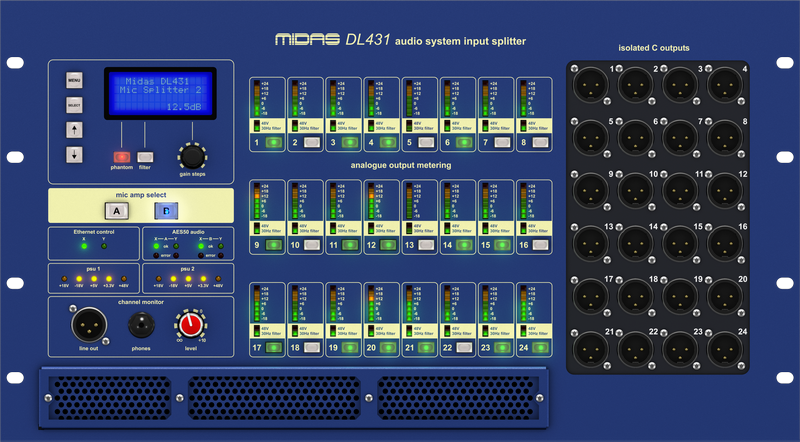

| DL431 |
  |
| 24 channel microphone splitter with 2 electronically and 1 transformer balanced outputs per channel 3 award-winning MIDAS microphone preamplifiers per channel with switchable +48 V phantom power 2 independent dual redundant AES50 (X and Y) network ports Local channel monitoring with integrated headphone amplifier 24 bit audio operation with 96 kHz sample rate Remote operation up to 80 m via CAT5/5e cable All settings programmable from front panel controls or console PSU status indicator LEDs and configuration LCD display on front panel Features Neutrik etherCON* AES50 network ports Rugged 6U rackmount chassis for durability in portable applications Dual redundant auto-ranging universal switch-mode power supplies 3-Year Warranty Program* Designed and engineered in England |
