Mesas digitais |
| S-4000S-3208 S-4000S-0832 S-4000S-MR |
 |
 |
 |

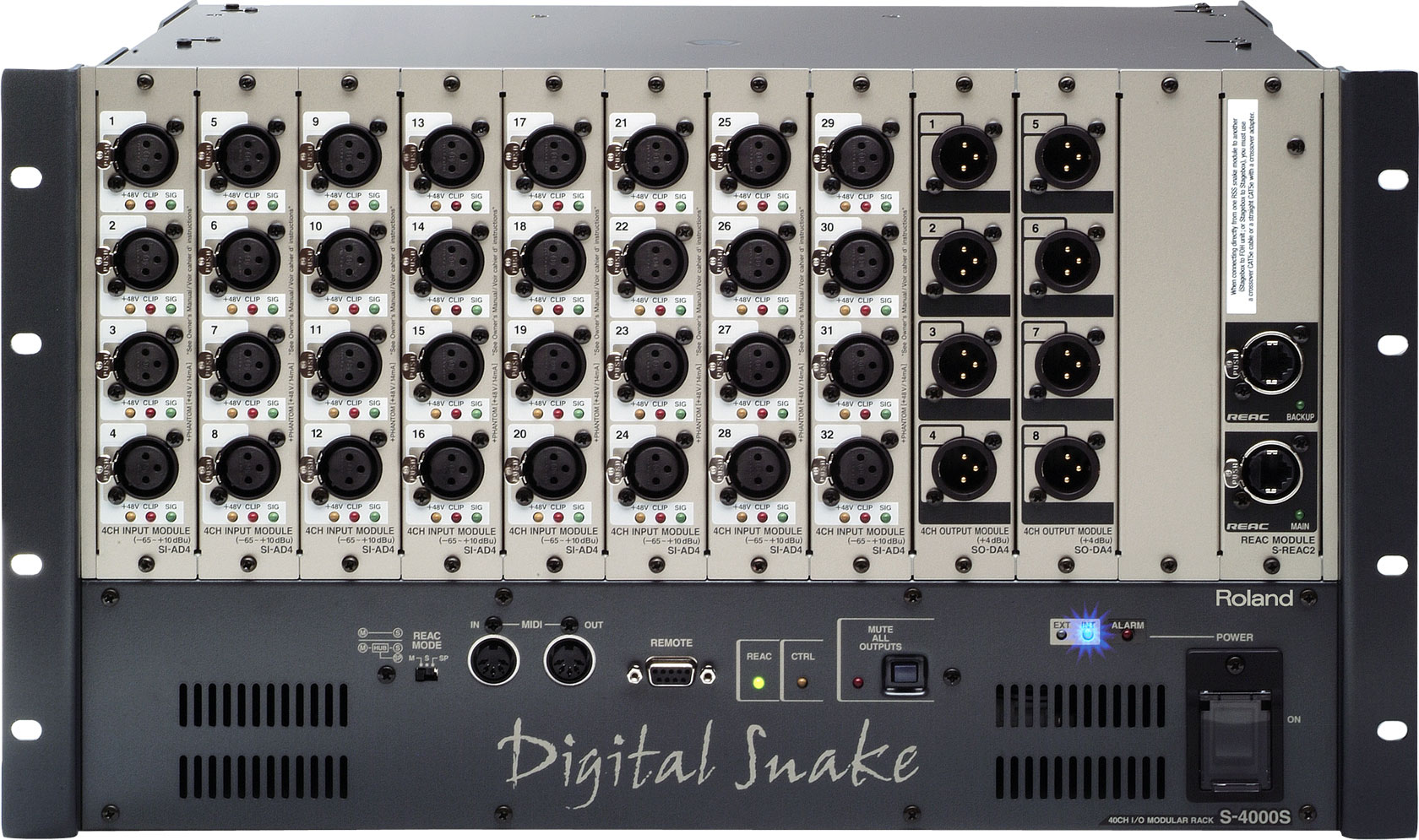

| 32 Mic/Line Inputs and 8 +4 Line Level Outputs provide professional quality source and return audio Source audio can be split to many locations using a standard Ethernet gigabit Switch High quality XR-1 mic preamps provide superb sound with lots of headroom Zipperless remote control of preamp levels available using S-4000R from stage or FOH positions Mic preamps on stage and digital audio transmission system eliminate the loss of high frequencies and intelligibility found in analog cabling Mic/Line level eliminates need for direct boxes on stage Redundant Ethernet ports with rugged Neutrik Ethercon connectors offer seamless switching to backup cable with no loss of audio Optional S-240P power supply switches automatically with no loss of audio in case of power supply interruption Modular design allows Input and Output modules to be changed for different system configurations |

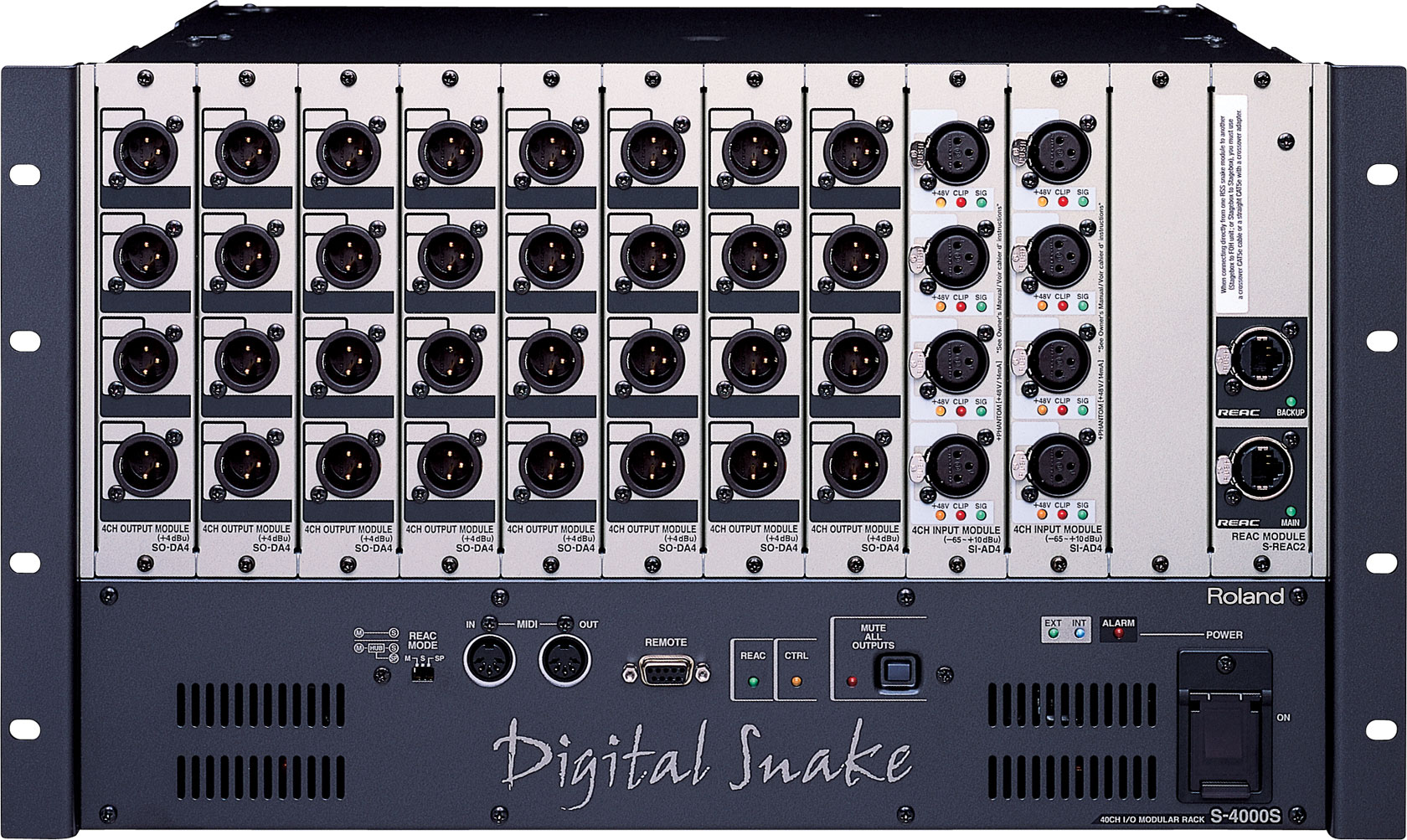

8 Mic/Line Inputs and 32 +4 Line Level Outputs provide professional quality source and return audio Source audio can be split to many locations using a standard Ethernet gigabit Switch High quality XR-1 mic preamps provide superb sound with lots of headroom Zipperless remote control of preamp levels available using S-4000R from stage or FOH positions Mic preamps on stage and digital audio transmission system eliminate the loss of high frequencies andintelligibility found in analog cabling Mic/Line level eliminates need for direct boxes on stage Redundant Ethernet ports with rugged Neutrik Ethercon connectors offer seamless switching to backup cable with no loss of audio Optional S-240P power supply switches automatically with no loss of audio in case of power supply interruption Modular design allows Input and Output modules to be changed for different system configurations |

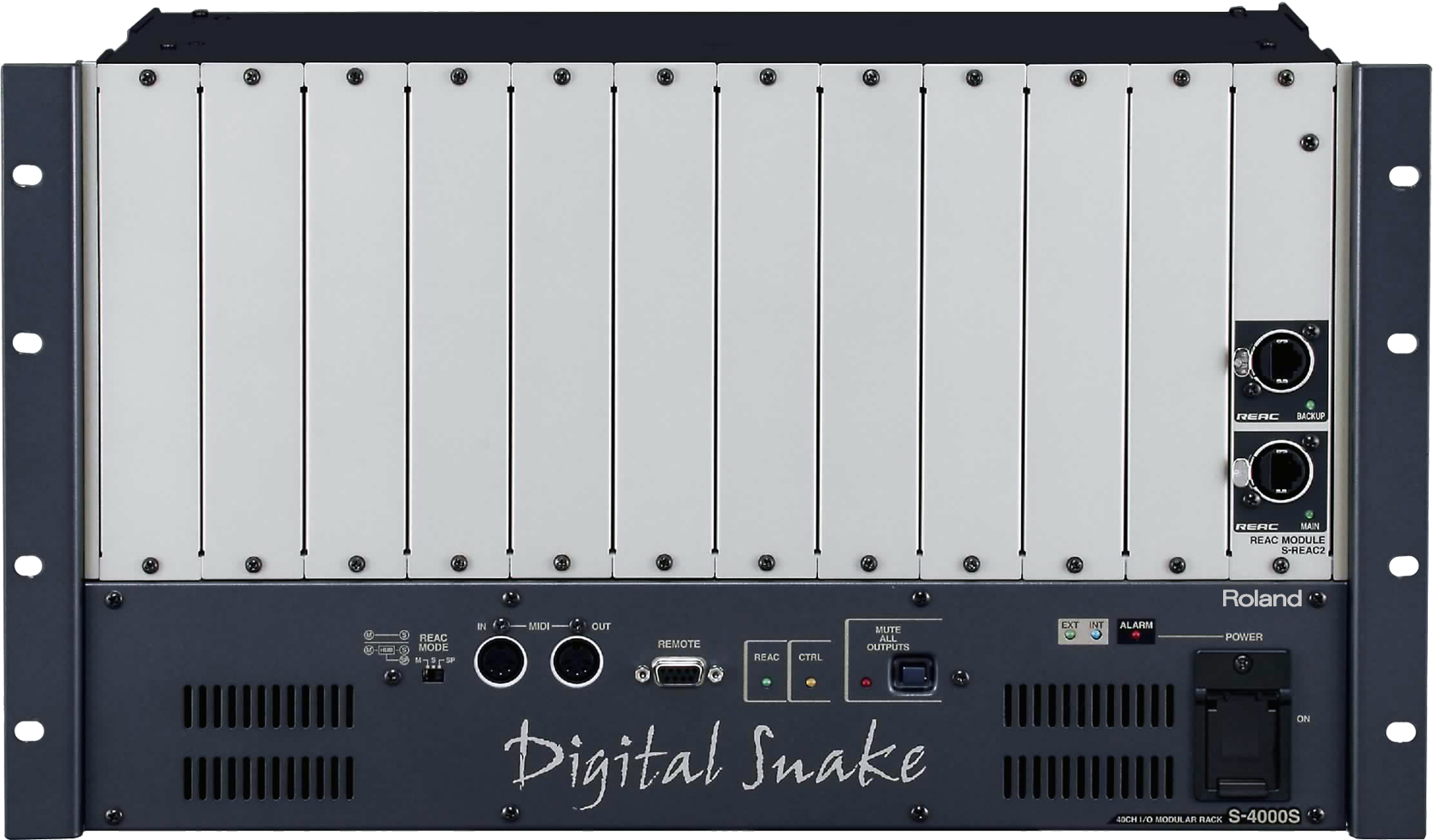

Modular rack chassis with no preinstalled In/Out modules. Designed for custom configurations such as 24x16 and 40x0. |
| S-2416 | S-4000H | S-1608 |
 |
 |
 |

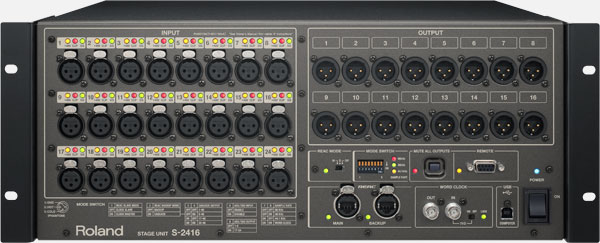

| 24 input x 16 output analog + 8 input x 8 output digital (AES/EBU) = 32 input x 24 output 2 REAC ports to either cascade additional snake or for redundant connection Newly developed high-grade mic preamps 4U adjustable front or rear rack-mount design Supports 24-bit 96kHz, 48kHz, or 44.1 kHz sample rates Word clock in & out Remote control via any V-Mixer console, R-1000, S-4000Rdedicated remote unit, and S-4000 RCS via USB (Windows/Mac) |

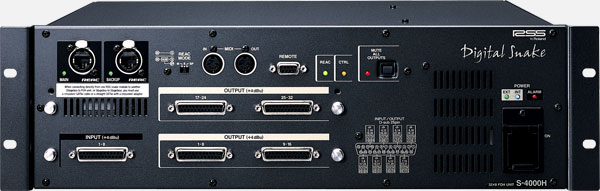

32 +4 Line Level Outputs and 8 +4 Line Level Inputs provide professional quality source and return audio Convenient 8-channel D Sub connectors with security bar MASS® connector options for touring and PA/Rental applications Redundant Ethernet ports with rugged Neutrik Ethercon connectors offer seamless switching to backup cable with no loss of audio Optional S-240P power supply switches automatically with no loss of audio in case of power supply interruption |
16 input x 8 output configuration Compact, floor-based or rack-mountable design High resolution 24 bit / 96 kHz audio quality Remote controllable preamps using an S-4000R or free RCS software REAC low latency digital audio transmission system Easy and affordable splits and recording options |
|

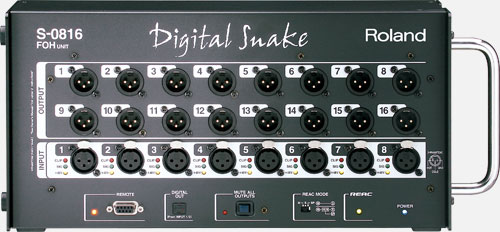

S-0816
|
S-0808 | S-4000M |
 |
 |
 |
| 16 input x 8 output configuration Compact, floor-based or rack-mountable design High resolution 24 bit / 96 kHz audio quality Remote controllable preamps using an S-4000R or free RCS software REAC low latency digital audio transmission system Easy and affordable splits and recording options |

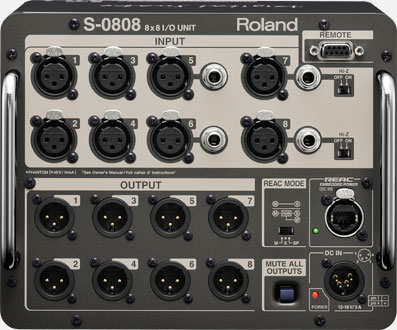

8 inputs x 8 outputs Compact, light-weight, rugged External battery powered or embedded power over REAC (PoE) TRS and Hi-Z inputs |

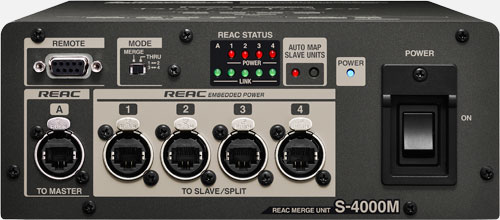

Merge up to 4 REAC devices into a single REAC stream Power REAC devices supporting embedded power Assign channels automatically with auto map function Patch input and output assignments using PC software or the M-400 / M-380 V-Mixer Automatically assign input channels using the Auto Map feature |
