MESA DIGITAIS VIDEO

V-50HD

VR-3EX

V-1200HDR

V-800HD

V-40HD

V-4EX

V-50HD

12 input, 4-Channel Video plus still channel Multi-Format Switcher Supports 3G/HD/SD SDI, HDMI, RGB/Component, and Composite Video Inputs Up to 1080p (3G SDI)
Embedding of audio with delay settings 12-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from SDI and HDMI inputs
4 Layer, Compositing of PinP, PinP/KEY, and STILL Built-In Preview Touch Monitor (7 inch Graphic color LCD 800 x 480 dots)
External Multi-View Output through HDMI HDCP Support
USB3.0 Video/Audio Output for web streaming and recording up to 1080p (uncompressed)

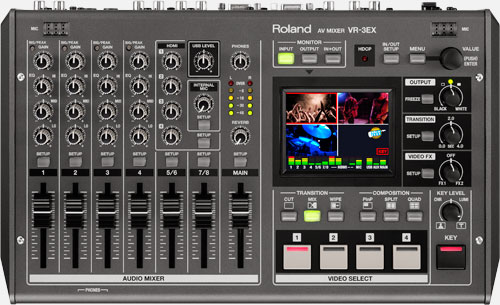

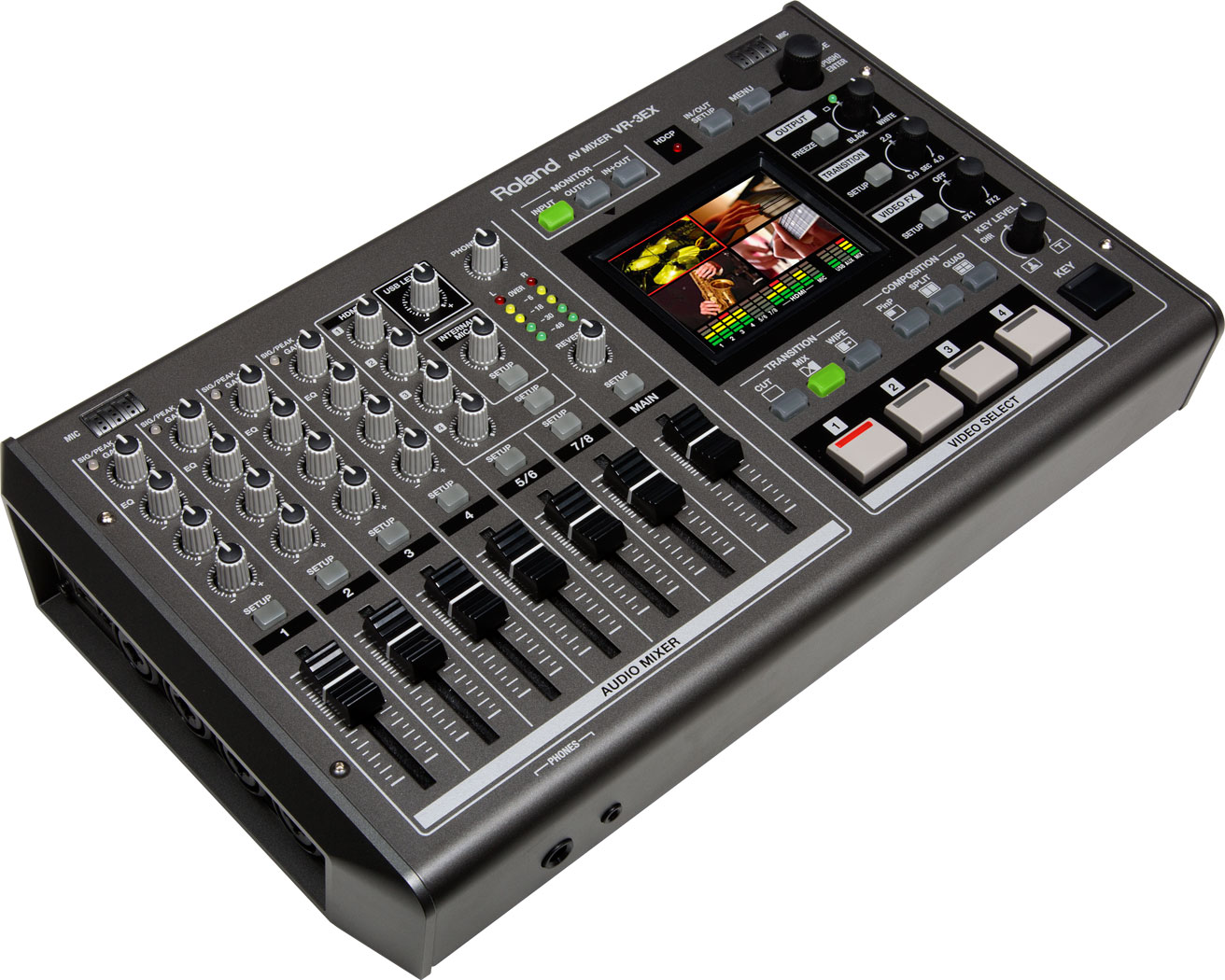

VR-3EX

HDMI & Composite Inputs Standard Definition 16:9 Mixing Engine Scaled Output up to 1080p Advanced 18 Channel Audio Mixer
USB 2.0 for 480i Streaming 2.5” Multiview Touchscreen Monitor Picture-in-Picture, Keyer and Video Effects

V-1200HDR

Dual 7" LCD Touchscreen Displays Transition Control with T-Bar 16 Cross-Point Controls HDMI Video Out Redundant Power Inputs

Dual touch monitors let you display different GUIs on the left and right. Incoming video signals from the HDMI connectors on the rear panel can also be displayed
.This broad range of cross-point switches affords a commanding view of 16 sources at one time. This is also switchable to either PGM/PST or flip/flop according to operator preference.Controls the PTZ parameters on up to 7 connected remote cameras.
In addition to an AC adapter, the unit can be powered by 12V battery. Connecting both at the same time provides redundant power.

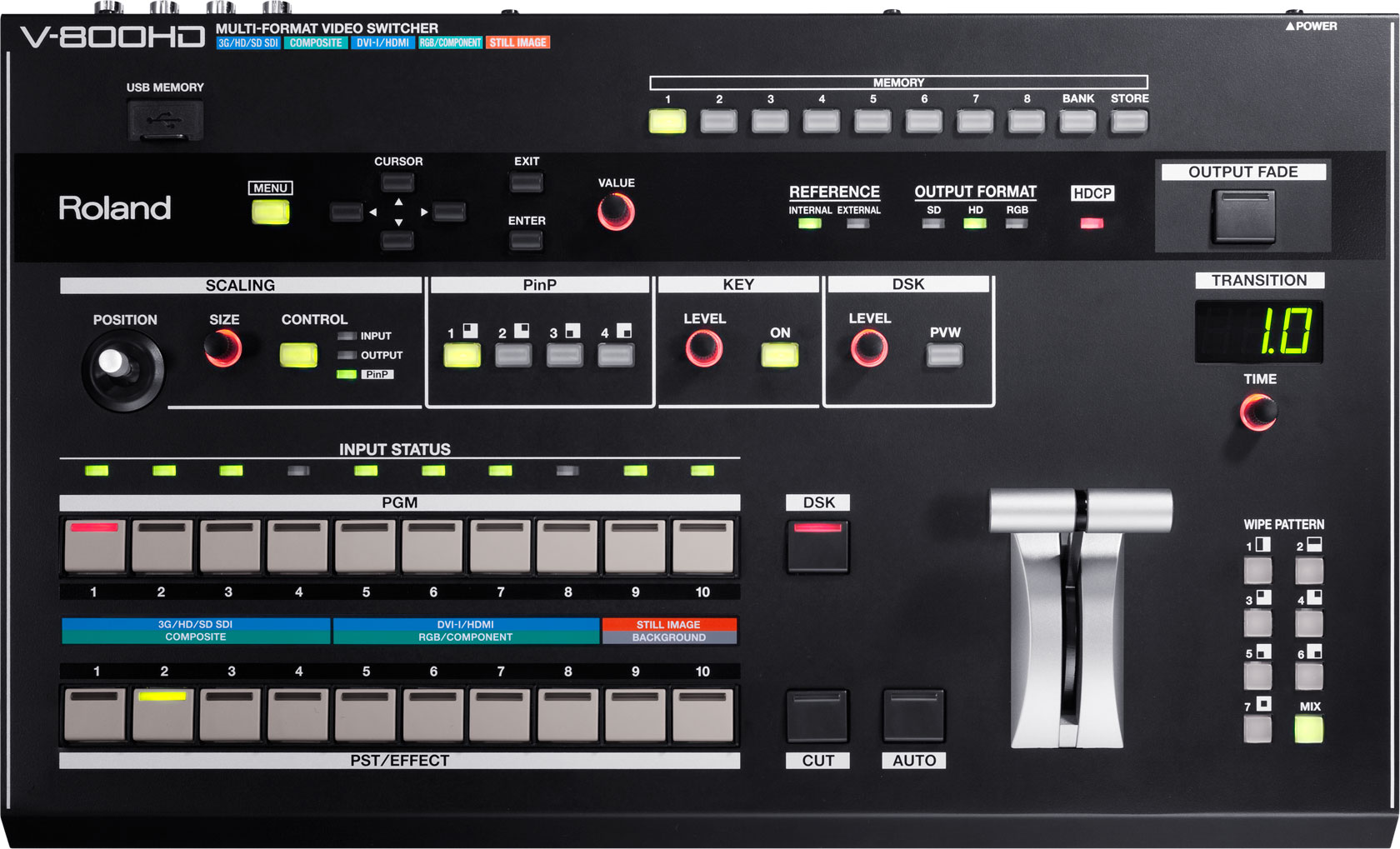

V-800HD

The V-800HD Live Video Switcher is ideal for any live event or installation that requires the freedom to connect any type of source whether it be digital or analog, computer or video format.

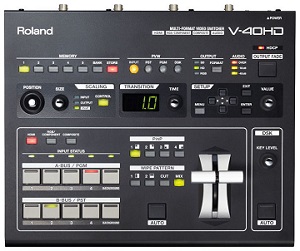

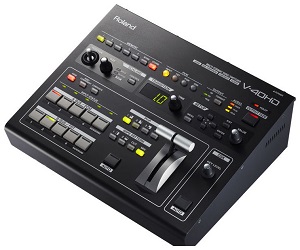

V-40HD

The Roland V-40HD Multi-Format Live Video Switcher is a welcomed addition to the powerful V-1600HD and V-800HD model lineup. The V-40HD Live Video Switche is ideal for any live event or installation that requires the freedom to connect a variety of sources whether they be digital or analog, computer or video format. It is particularly positioned to support configurations using popular HDMI cameras as well as computers.

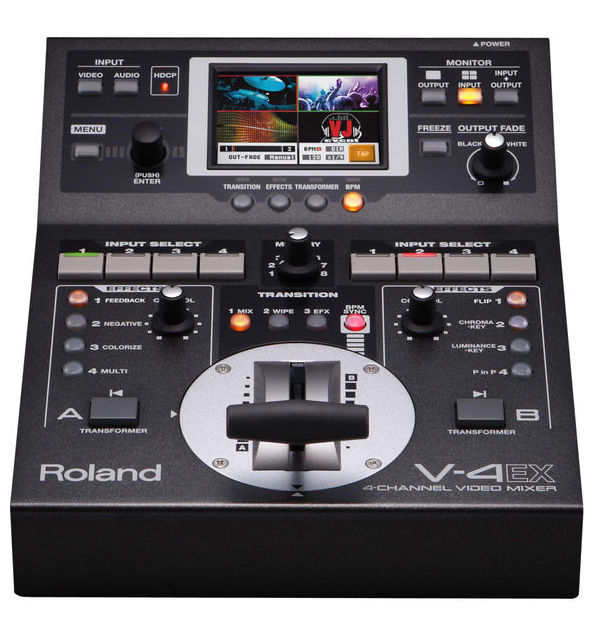

V-4EX

Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
