The HD series consists of five models with a power output ranging from 230 W/8 Ω per channel, to 5000 W/4 Ω (bridged), all in a 19’’/2U format, ideal for use in fixed installations.HD Series technology combines Class AB for the smaller models HD800 / HD1200, with Class H for the more powerful units HD2000 / HD3200 / HD4000.
All five models are based on our proven High Dynamic Power technology, which means higher dynamic headroom for an outstanding hearing experience and higher efficiency in the ratio of power output versus energy consumed.
They incorporate the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs.

HD SERIES The HD series consists of five models with a power output ranging from 230 W/8 Ω per channel, to 5000 W/4 Ω (bridged), all in a 19’’/2U format, ideal for use in fixed installations.
HD Series technology combines Class AB for the smaller models HD800 / HD1200, with Class H for the more powerful units HD2000 / HD3200 / HD4000.
All five models are based on our proven High Dynamic Power technology, which means higher dynamic headroom for an outstanding hearing experience and higher efficiency in the ratio of power output versus energy consumed.
They incorporate the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs.

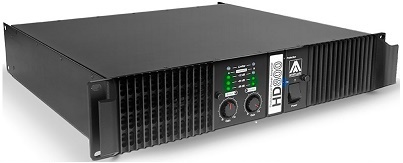

The HD800 is a Class AB amplifier with 400 + 400 W @ Stereo 4Ω power output in a 19’’/2U format, ideal for use in fixed installations.
HD800 incorporates the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs.
The whole HD series is based on our proven High Dynamic Power technology, which means higher efficiency in the ratio of power output versus energy consumed.

TECHNICAL FEATURES HD 800
Voltage Gain    32 dB
Input Sensitivity    1 V
Input Impedance    20 kΩ
Slew Rate    +/-12 V/μs
Output Power (1 kHz – 0,1% THD) (1)
Stereo 8 Ω    230 + 230 W
Stereo 4 Ω    400 + 400 W
Stereo 2 Ω    550 + 550 W (2)
Bridge 8 Ω    800 W
Bridge 4 Ω    1100 W (2)
Average Current draw (3)    3 A @ 230 V AC
Frequency Response    20 Hz – 20 kHz (0/-1 dB)
Damping Factor (1 kHz @ 8 Ω)    280
Crosstalk    60 dB
S/N Ratio (A-weighted)    102 dB (A)
Mains    220 – 240 V AC- 50/60 Hz
Dimensions (HxWxD)    88 x 482 x 420 mm
Weight    14 kg

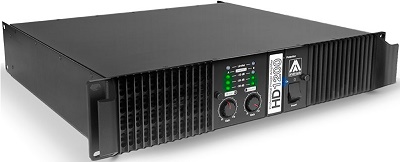

The HD1200 is a Class AB amplifier with 600 + 600 W @ Stereo 4Ω power output in a 19’’/2U format, ideal for use in fixed installations. HD1200 incorporates the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs. The whole HD series is based on our proven High Dynamic Power technology, which means higher efficiency in the ratio of power output versus energy consumed.	TECHNICAL FEATURES HD1200 Voltage Gain 32 dB Input Sensitivity 1.25 V Input Impedance 20 kΩ Slew Rate +/-12 V/μs Output Power (1 kHz – 0,1% THD) (1) Stereo 8 Ω 350 + 350 W Stereo 4 Ω 600 + 600 W Stereo 2 Ω 850 + 850 W (2) Bridge 8 Ω 1200 W Bridge 4 Ω 1700 W (2) Average Current draw (3) 4 A @ 230 V AC Frequency Response 20 Hz – 20 kHz (0/-1 dB) Damping Factor (1 kHz @ 8 Ω) 300 Crosstalk 60 dB S/N Ratio (A-weighted) 104 dB (A) Mains 220 – 240 V AC- 50/60 Hz Dimensions (HxWxD) 88 x 482 x 420 mm Weight 15 kg

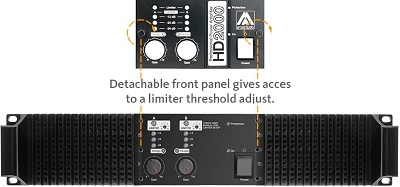

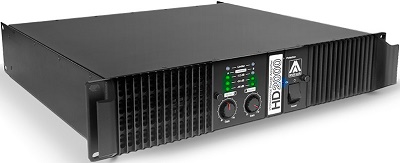

The HD2000 is a Class H amplifier with 1000 + 1000 W @ Stereo 4Ω power output in a 19’’/2U format, ideal for use in fixed installations. HD2000 incorporates the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs. The whole HD series is based on our proven High Dynamic Power technology, which means higher efficiency in the ratio of power output versus energy consumed.	TECHNICAL FEATURES HD2000 Voltage Gain 32 dB Input Sensitivity 1.74 V Input Impedance 20 kΩ Slew Rate +/-12 V/μs Output Power (1 kHz – 0,1% THD) Stereo 8 Ω 600 + 600 W Stereo 4 Ω 1000 + 1000 W Stereo 2 Ω 1500 + 1500 W Bridge 8 Ω 2000 W Bridge 4 Ω 3000 W Average Current draw (1/3 power) 5 A Frequency Response 20 Hz – 20 kHz (0/-1 dB) Damping Factor (1 kHz @ 8 Ω) 350 Crosstalk -65 dB S/N Ratio (A-weighted) -105 dB (A) Mains 220 – 240 V AC- 50/60 Hz Dimensions (HxWxD) 88 x 482 x 440 mm Weight 18 kg

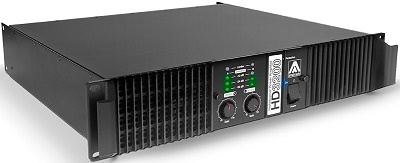

The HD3200 is a Class H amplifier with 1750 + 1750 W @ Stereo 4Ω power output in a 19’’/2U format, ideal for use in fixed installations. HD3200 incorporates the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs. The whole HD series is based on our proven High Dynamic Power technology, which means higher efficiency in the ratio of power output versus energy consumed.	TECHNICAL FEATURES HD3200 Voltage Gain 32 dB Input Sensitivity 2 V Input Impedance 20 kΩ Slew Rate +/-12 V/μs Output Power (1 kHz – 0,1% THD) Stereo 8 Ω 1000 + 1000 W Stereo 4 Ω 1750 + 1750 W Stereo 2 Ω 2500 + 2500 W Bridge 8 Ω 3500 W Bridge 4 Ω 5000 W Average Current draw (1/3 power) 6 A Frequency Response 20 Hz – 20 kHz (0/-1 dB) Damping Factor (1 kHz @ 8 Ω) 400 Crosstalk -65 dB S/N Ratio (A-weighted) -108 dB (A) Mains 220 – 240 V AC- 50/60 Hz Dimensions (HxWxD) 88 x 482 x 440 mm Weight 21 kg
The HD4000 is a Class H amplifier with 4000 W @ Bridge 4Ω power output in a 19’’/2U format, ideal for use in fixed installations. HD4000 incorporates the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC output and anti-short circuit on the outputs. The whole HD series is based on our proven High Dynamic Power technology, which means higher efficiency in the ratio of power output versus energy consumed.	TECHNICAL FEATURES HD 4000 Voltage Gain 32 dB Input Sensitivity 1.88 V Input Impedance 20 kΩ Slew Rate +/-12 V/μs Output Power (1 kHz – 0,1% THD) Stereo 8 Ω 760 + 760 W Stereo 4 Ω 1400 + 1400 W Stereo 2 Ω 2300 + 2300 W Bridge 8 Ω 2850 W Bridge 4 Ω 4600 W Average Current draw (1/3 power) 7 A Frequency Response 20 Hz – 20 kHz (0/-1 dB) Damping Factor (1 kHz @ 8 Ω) 350 Crosstalk -65 dB S/N Ratio (A-weighted) -108 dB (A) Mains 220 – 240 V AC- 50/60 Hz Dimensions (HxWxD) 88 x 482 x 440 mm Weight 18 kg

SM SERIES High Dynamic Professional Power Amplifiers

SWITCH-MODE POWER SUPPLY AMPLIFIERS

The SM amplifier range offers the high dynamic power of Master Audio amplifiers in a lightweight format.

Their proven technology combines a switch-mode power supply with Class H amplification modules, allowing a considerable weight reduction without losing sound quality and reliability.
They incorporate the soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC and output short-circuit.

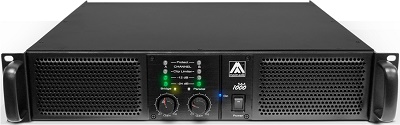

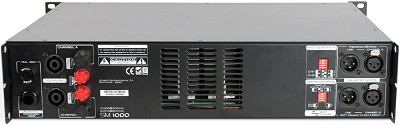

TECHNICAL FEATURES SM1000

Voltage Gain    38 dB
Input Sensitivity    26 dB / 32 dB / 38 dB
Input Impedance    20 kΩ
Slew Rate    +/-20 V/μs
Output Power (1 kHz – 0,1% THD)
Stereo 8 Ω    310 + 310 W
Stereo 4 Ω    500 + 500 W
Stereo 2 Ω    600 + 600 W
Bridge 8 Ω    1000 W
Bridge 4 Ω    1200 W
Average Current draw (1/3 power)    3 A
Frequency Response    20 Hz – 20 kHz (0/-0.5 dB)
Damping Factor (1 kHz @ 8 Ω)    > 200
Crosstalk    -60 dB
S/N Ratio (A-weighted)    -102 dB (A)
Dimensions (HxWxD)    88 x 482 x 350 mm
Weight    8 kg

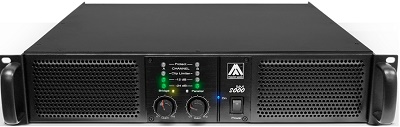

TECHNICAL FEATURES 2000
Voltage Gain    38 dB
Input Sensitivity    26 dB / 32 dB / 38 dB
Input Impedance    20 kΩ
Slew Rate    +/-20 V/μs
Output Power (1 kHz – 0,1% THD)
Stereo 8 Ω    650 + 650 W
Stereo 4 Ω    1050 + 1050 W
Stereo 2 Ω    1350 + 1350 W
Bridge 8 Ω    2200 W
Bridge 4 Ω    2900 W
Average Current draw (1/3 power)    5 A
Frequency Response    20 Hz – 20 kHz (0/-0.5 dB)
Damping Factor (1 kHz @ 8 Ω)    > 300
Crosstalk    -60 dB
S/N Ratio (A-weighted)    -104 dB (A)
Dimensions (HxWxD)    88 x 482 x 409 mm
Weight    9 kg

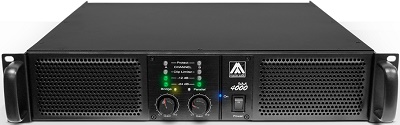

TECHNICAL FEATURES SM4000
Voltage Gain    38 dB
Input Sensitivity    26 dB / 32 dB / 38 dB
Input Impedance    20 kΩ
Slew Rate    +/-20 V/μs
Output Power (1 kHz – 0,1% THD)
Stereo 8 Ω    1200 + 1200 W
Stereo 4 Ω    2000 + 2000 W
Stereo 2 Ω    3000 + 3000 W
Bridge 8 Ω    4100 W
Bridge 4 Ω    6200 W
Average Current draw (1/3 power)    8 A
Frequency Response    20 Hz – 20 kHz (0/-0.5 dB)
Damping Factor (1 kHz @ 8 Ω)    > 300
Crosstalk    -65 dB
S/N Ratio (A-weighted)    -108 dB (A)
Dimensions (HxWxD)    88 x 482 x 464 mm
Weight    13 kg

SD SERIES

Thanks to its latest technology on Class D amplification and Switch-Mode Power Supply with Power Factor Correction, SD amplifiers provide good sound quality and reliability in 1 U rack format. Experience all the features of bigger and heavier amps: high outputpower, soft-start circuit with gradual volume increase, clip limiters and special protection features such as temperature control, overcurrent, DC, output short-circuit. SD amplifiers are just lighter and compact.

TECHNICAL FEATURES SD1000
Voltage Gain    33 dB
Input Sensitivity    1 V
Input Impedance    20 kΩ
Slew Rate    > 20 V/μs
Output Power (1 kHz – 0,1% THD)
Stereo 8 Ω    300 + 300 W
Stereo 4 Ω    560 + 560 W
Bridge 8 Ω    1120 W
Average Current draw (1/3 power)    2.5 A @ 230 V
Frequency Response    20 Hz – 20 kHz (+0, -3 dB) / 20 Hz – 10 kHz (+0, -1.5 dB)
Damping Factor (1 kHz @ 8 Ω)    > 250
Crosstalk    60 dB
S/N Ratio (A-weighted)    >-95 dB (A)
Mains    160 – 250 V AC- 50/60 Hz (PFC 90-250 V AC)
Dimensions (HxWxD)    44 x 483 x 240 mm (1 U Rack)
Weight    3.2 kg

TECHNICAL FEATURES SD 2000
Voltage Gain    33 dB
Input Sensitivity    1.3 V
Input Impedance    20 kΩ
Slew Rate    > 20 V/μs
Output Power (1 kHz – 0,1% THD)
Stereo 8 Ω    600 + 600 W
Stereo 4 Ω    1000 + 1000 W
Bridge 8 Ω    2000 W
Average Current draw (1/3 power)    4 A @ 230 V
Frequency Response    20 Hz – 20 kHz (+0, -3 dB) / 20 Hz – 10 kHz (+0, -1.5 dB)
Damping Factor (1 kHz @ 8 Ω)    > 250
Crosstalk    60 dB
S/N Ratio (A-weighted)    >-95 dB (A)
Mains    160 – 250 V AC- 50/60 Hz (PFC 90-250 V AC)
Dimensions (HxWxD)    44 x 483 x 240 mm (1 U Rack)
Weight    3.3 kg

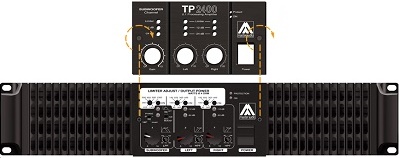

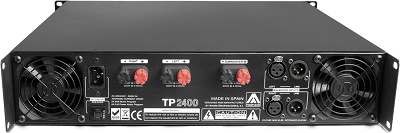

Master Audio revolutionized the power amp sector in 1988 by bringing the industry’s first triphonic amplifier, the TP700, to the market.
25 years later, the TP2400, holding true to its original principle, continues to be the benchmark in its class.
The TP2400 is very easy to set up and use, and the results obtained are exceptional. Comparable with more expensive and complex systems, the TP2400 is the ideal option for all types of bars or pubs.

TECHNICAL FEATURES TP2400
Sensitivity    1.5 V for full power
Input Impedance    20 kΩ
Output Power
L & R    300 + 300 W @ 8 Ω / 500 + 500 W @ 4 Ω
Subwoofer    800 W @ 8 Ω / 1400 W @ 4 Ω
Average Current draw (1/3 power)    4.3 A @ 230 V
Frequency Response
L & R    70~140 Hz – 20 kHz (-3 dB)
Subwoofer    30~50 Hz – 90~140 Hz (-3 dB)
Damping Factor (1 kHz @ 8 Ω)    L & R > 280, Subwoofer > 400
Crosstalk    65 dB
THD
S/N Ratio (A-weighted)    104 dB
Mains    220 – 240 V AC- 50/60 Hz
Dimensions (HxWxD)    88 x 482 x 440 mm (2U Rack 19”)
Weight    21 kg
