These units are completely configurable: each input can be assigned to any output with various crossover filters (Butterworth, Linkwitz-Riley, Bessel), 10 parametric equalisers, compressor/limiter, delay up to 2 seconds (680 metres), polarity control, up to 80 presets memory, password protection PC software control (available for Windows and Mac OS). |

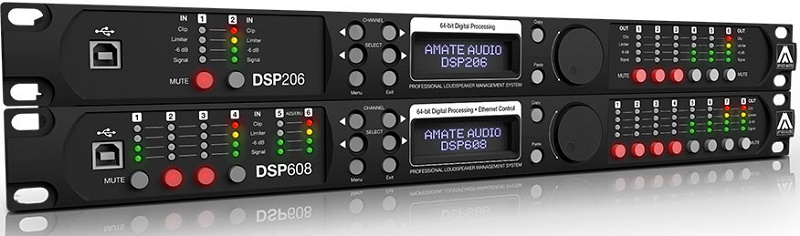

| NEW DESIGN and improved performance for the well-known DSP206 and DSP608. Now with an universal switched-mode power supply and a high contrast EBTN black LCD.They are the ideal tools for enhancing, updating and protectingany sound system by using the latest technology in sound processing |
DIGITAL LOUDSPEAKERS MANAGEMENT SYSTEM |
 |
 |
TECHNICAL FEATURES
Inputs 4 (XLR) + 2 AES/EBU Outputs 8 (XLR) Input Level (Nominal / Max) 0 dBu / +23 dBu Input Dynamic Range 118 dB Output Level (Nominal / Max) 0 dBu / +12 dBu Fequency Response 20 Hz to 20 kHz (+/– 0.5 dB) A/D Converters 24–bit, 65 kHz Latency < 1 ms Connectivity USB & Ethernet
MainsUniversal switch mode Power Supply 90-264 V / 45-65 Hz |

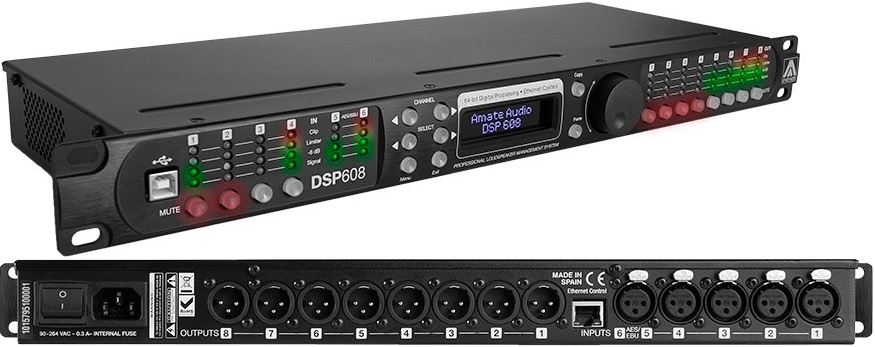

| The DSP608 is the
ideal tool for enhancing, updating and protecting any sound system by
using the latest technology in sound processing. The DSP608 has 4 inputs plus 2 digital AES/EBU and 8 outputs, XLR balanced.These units are completely configurable: each input can be assigned to any output with various crossover filters (Butterworth, Linkwitz-Riley, Bessel), 10 parametric equalisers, compressor/limiter, delay up to 2 seconds (680 metres), polarity control, up to 80 presets memory, password protection and PC software control (available for Windows and Mac OS) |
 |
TECHNICAL FEATURES Inputs 4 (XLR) + 2 AES/EBU Outputs 8 (XLR) Input Level (Nominal / Max) 0 dBu / +23 dBu Input Dynamic Range 118 dB Output Level (Nominal / Max) 0 dBu / +12 dBu Fequency Response 20 Hz to 20 kHz (+/– 0.5 dB) A/D Converters 24–bit, 65 kHz Latency < 1 ms Connectivity USB & Ethernet Mains Universal switch mode Power Supply 90-264 V / 45-65 Hz |

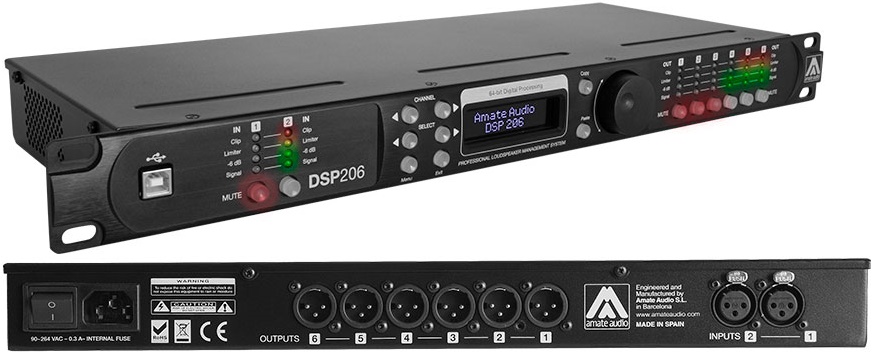

| The DSP206 is the
ideal tool for enhancing, updating and protecting any sound system by
using the latest technology in sound processing. The DSP206 has 2 inputs and 6 outputs, XLR balanced. |
 |
 |
 |

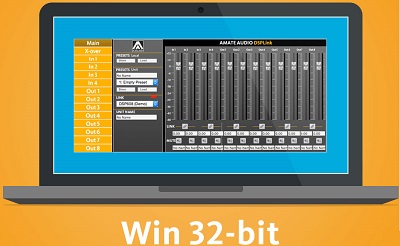

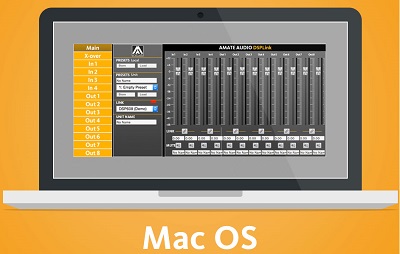

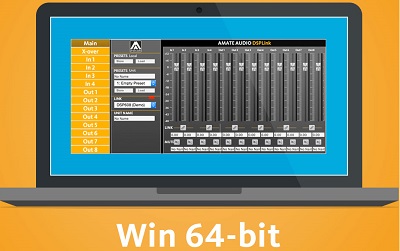

| DSPLink allows the user to control the DSP unit from a computer via the USB communication link (or additionally through Ethernet, in model DSP608). For the USB connection, a driver must be installed (included with the DSPLink installation package). |
