| More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers. |
 |
 |
|

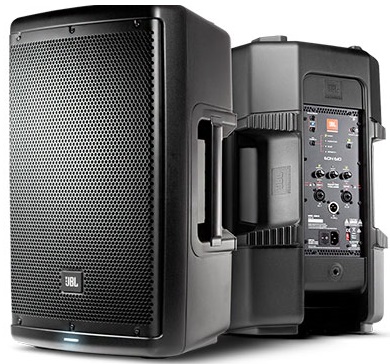

| EON610 10" Two-Way Multipurpose Self-Powered Sound Reinforcement SYSTEM TYPE Self powered 10”, two-way, bass-reflex MAX SPL OUTPUT 124 dB FREQ. RANGE (-10 DB) 52 Hz - 20 kHz Power Rating:1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
Purposeful Product Design JBL Waveguide Technology Bluetooth Integration |
EON612 12" Two-Way Multipurpose Self-Powered Sound Reinforcement SYSTEM TYPE Self powered 12", two-way, bass-reflex MAX SPL OUTPUT 126 dB FREQ. RANGE (-10 DB) 48 Hz - 20 kHz Power Rating:1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
 |
 |
 |

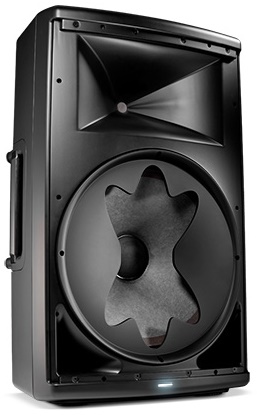

| EON615 15" Two-Way Multipurpose Self-Powered Sound Reinforcement SYSTEM TYPE Self powered 15", two-way, bass-reflex MAX SPL OUTPUT 127 dB FREQ. RANGE (-10 DB) 39 Hz - 20 kHz Power Rating:1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
 |

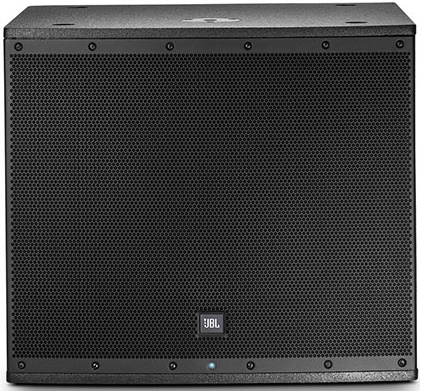

EON618S JBL Premium Transducers 1000 W highly efficient Class-D amplification Maximum SPL Output: 134dB System Type: Self powered 18” Subwoofer Frequency Range (-10dB): 31Hz - 150Hz Frequency Response (- 3dB): 42.5Hz - 150Hz Bluetooth Control • 3 Parametric EQs + Hi & Lo Shelf • Gain and Delay • Save and Recall settings • Polarity Inversion JBL Engineered Crossover Presets • 80 Hz • 100 Hz • 120 Hz • EON M20 Pole Cup Rugged, stage-ready Duraflex enclosure |

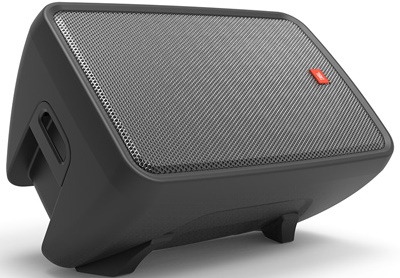

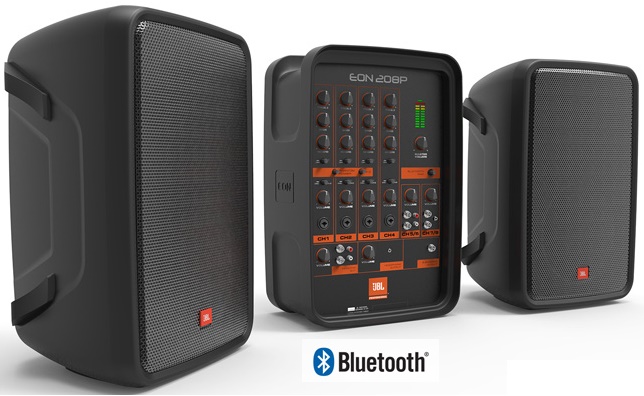

| Get
legendary sound quality with the EON208P all-in-one portable PA system,
complete with an 8-channel mixer and Bluetooth audio. With a convenient
suitcase-style design, the EON208P makes it easy to get great sound for
performances, meetings and events. The 8-channel detachable mixer
provides professional connections for mics, instruments and line-level
sources, while the 8” two-way stereo speakers deliver
best-in-class audience coverage. Bluetooth connectivity also allows you
to stream audio from your mobile device. With 300 watts, you’ll
have more than enough volume to be heard. Plus, the compact and
lightweight form factor means you can carry the entire system with one
hand |
  System Type Portable 2-way full-range loudspeakers with powered mixer Maximum SPL Output 121 dB peak Frequency Range (-10 dB) 60 Hz - 20 kHz Frequency Response (+/-3 dB) 70 Hz - 18 kHz AC Input 100-120 V, 220-240 V 50/60 Hz Amp Design Class D System Power Rating 300 W (2x 150 W stereo) Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs Channels 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack Phantom Power CH1 and CH2 have phantom power control and share the same selection switch Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost System Limiter On-board DSP limiting LF Driver 1x JBL 8" (203mm) woofer HF Driver 1x 1" Neodymuim black aluminum dome tweeter Coverage Pattern 100° horizontal x 60° vertical Crossover Frequency 2 kHz Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave) Enclosure Polypropylene Suspension/Mounting 36 mm pole socket Handles One on top Speaker Grille Powder-coated perforated steel Shipping Package（HxWxD） 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm) Net Weight 38.8 lbs (17.6 kg) |

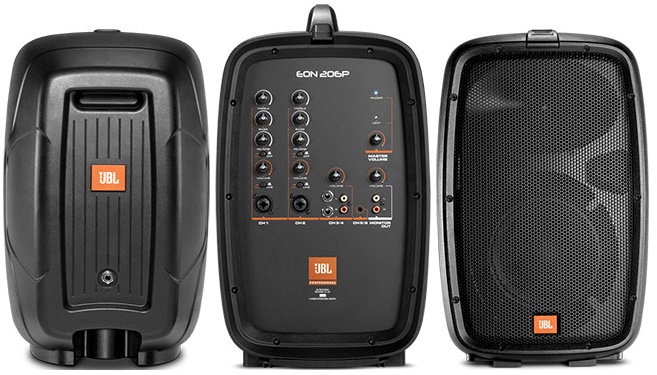

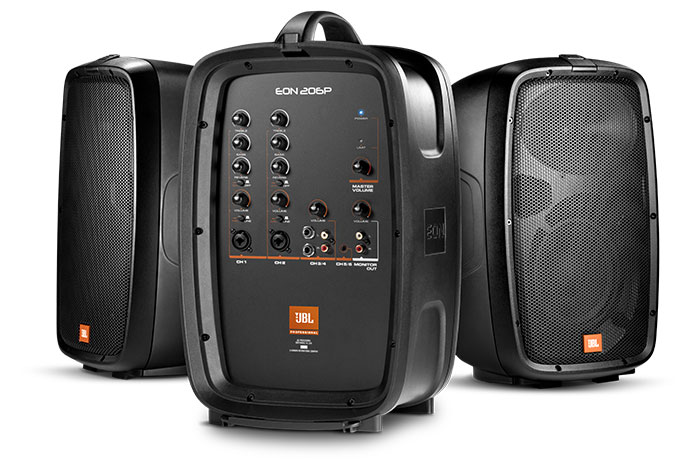

| The EON206P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message. |
  |
| EON206 SPEAKER System Type: 2 Self powered 6.5”, two-way, bass-re?ex Max SPL Output: 113 dB Frequency Range (-10dB): 64Hz – 22kHz Frequency Response (-3dB): 77Hz – 20kHz Coverage Pattern: 100° x 80° Ampli?er Design: Class D Power Rating: 160 W (2 X 80W) Package Dimentions (mm): 530 x 705 x 340 (H x W x D) (in): 20.9” X 27.8” x 13.4” Net Weight: 11.38 kg (25 lbs) |
  |
EON206 POWERED MIXER Input Connectors: 6 inputs (2 Mono Mic/Line, 2 x Stereo) Channels: 1-2 are XLR / 1/4” jack combo connectors XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack Input Impedance: Ch 1-2 Combo: XLR 40 K Ohms Balanced Ch 1-2 Combo: TRS 40 K Ohms Balanced Ch 3-4: TRS 20 K Ohms Balanced Ch 3-4: RCA 5 K Ohms Unbalanced Ch 5-6: 3.5 mm 10 K Ohms Unbalanced Output Connectors: Monitor outputs: one pair of RCA jacks (stereo) Signal Indicators: Limit: Yellow LED indicates limiter active condition EQ: Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost System Limiter: On Board DSP Limiting and Tuning |
