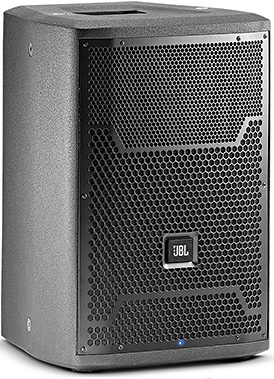

| The
PRX710 is the most compact and versatile speaker in the PRX700 Series.
Designed to deliver maximum performance for its weight and size as a
front of house main PA. Two user selectable EQ settings are provided to
optimize the system for either application. With a dual socket pole
mount the PRX712 is a perfect match with a PRX700 Series subwoofer,
offering a high performance self-powered sub/sat system. The PRX710 is comprised of a 10" woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization. All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of1000 lbs. each. The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob. |
| The PRX700 Series
represent an evolutionary step in the efficient use of a mplifier
power, rugged durability and enhanced versatility in a self-powered
loudspeaker designed from the ground up to perform in the real world of
sound reinforcement where challenging audio environments, high ambient
noise levels and loud volumes are typical. They are the first systems
to use our patented Differential Drive technology with ferrite drivers
featuring high power, wide bandwidth and low distortion. Versatile,
scalable, easy-to-transport and set up, the PRX700 Series use JBL's
tour tested technology throughout for a lifetime of reliable
performance you can trust. |
 |
||
PRX710 |
PRX710 Power Rating 1500 W
AC Power Input 100V - 240V~ 50/60 Hz Frequency Range (-10 dB) Normal: 50 Hz – 19.6kHz Boost: 42.9 Hz – 20kHz Frequency Response (±3 dB) Normal: 63.5 Hz – 18.5kHz Boost: 53 Hz – 18.6kHz Coverage Pattern 100° x 60° nominal Directivity Index (DI) 9 dB Directivity Factor (Q) 8 Crossover Frequency 1.9 kHz Maximum SPL 133 dB Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio. Dynamic Control (Input) dbx Type IV™ limiter circuit Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced) LF Driver 1 x JBL M110-4 250mm (10 in) woofer HF Driver 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver Enclosure Trapezoidal, 18 mm, plywood Suspension / Mounting single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point Transport 1 x integrated handle with injection molded backing cup Finish Obsidian DuraFlex™ finish Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input Output Connectors 1 male XLR balanced output Dimensions (H x W x D) 498.7 mm x 335.6 mm x 322.3 mm (19.63 in x 13.21 in x 12.69 in) Net Weight 16.4 kg (36 lb) |
PRX710 |
|

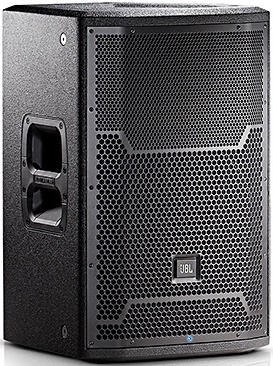

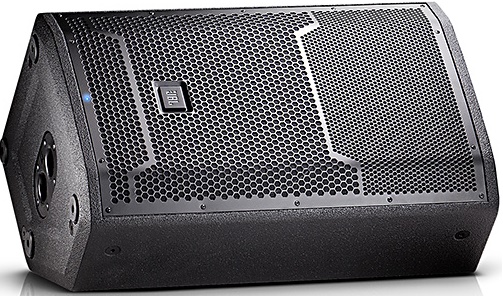

PRX712
  |
Power Rating 1500 W AC Power Input 100V - 240V~ 50/60 Hz Frequency Range (-10 dB) Main: 44.8 Hz – 19.6 kHz Monitor: 44.8 Hz – 19.5 kHz Frequency Response (±3 dB) Main: 55.7 Hz – 18.2 kHz Monitor: 56.5 Hz – 17.7 kHz Coverage Pattern 90° x 50° nominal Directivity Index (DI) 10.2 dB Directivity Factor (Q) 10.4 Crossover Frequency 1.8 kHz Maximum SPL Normal: 135 dB Boost: 135 dB Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio. Dynamic Control (Input) dbx Type IV™ limiter circuit Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced) LF Driver 1 x JBL 272G 305mm (12 in) woofer HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver Enclosure Asymmetrical, 18 mm, plywood Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points Transport 1 x injection molded handles with backing cup Finish Obsidian DuraFlex™ finish Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input Output Connectors 1 male XLR balanced output Dimensions (H x W x D) 612.394 mm x 384.556 mm x 341.376 mm (24.11 in x 15.14 in x 13.44 in) Net Weight 19.4 kg (42.5 lb.) |
  |
Power Rating 1500 W AC Power Input 100V - 240V~ 50/60 Hz |

|

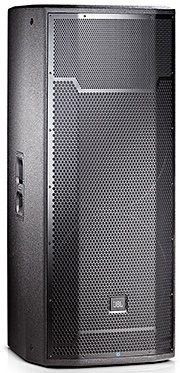

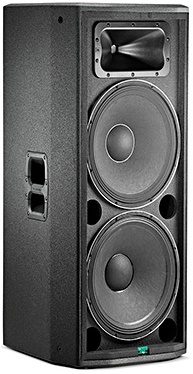

PRX725 Power Rating 1500
W |
  |
Power Rating 1500
W |
 |
Power Rating 1500
W Internal Crossover Frequency 100 Hz DSP controlled 48 dB filter slope |
 |
Power Rating 1500 W Loop out Crossover Frequency 120 Hz analog 24 dB filter slope Maximum SPL134 dB peak |
