JBL Professional has made a name for itself by producing great sounding, long lasting portable PA systems. With the introduction of the SRX800 line of powered portable PA loudspeakers, JBL has set the standard for what a fully professional powered PA system should be. SRX800 breaks new ground, bringing together JBL’s premium transducers and enclosures, Crown’s Proprietary Front-End DriveCore Technology, user-configurable DSP, and full HiQnet Network control compatible with a variety of platforms. Integrating industry-leading levels of sound quality, power, control, and durability, SRX800 is a perfect all in one solution wherever high performance, comprehensive control, and pristine sound are required. Each component in the SRX800 Series was purposefully designed and thought through to deliver a perfectly tuned system that is powerful, easy to use, and rugged enough for the most demanding applications.

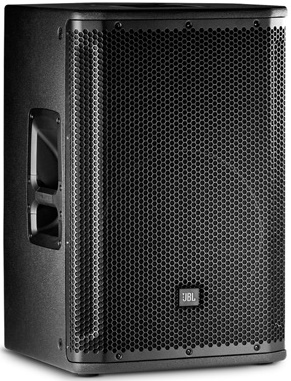

SRX812P	SRX812P System Type Self powered 12”, two-way, bass-reflex Max SPL Output 136 dB Frequency Range (-10 dB) 40 Hz - 21 kHz Frequency Response (-3 dB) 48 Hz - 20 kHz Coverage Pattern 90° x 50° Amplifier Design Class D Power Rating2000 W Peak Dimensions (H x W x D)638 x 415 x 429 (mm) 25.11 x 16.31 x 16.87 (in) Net Weight26.4 kg (58 lb)

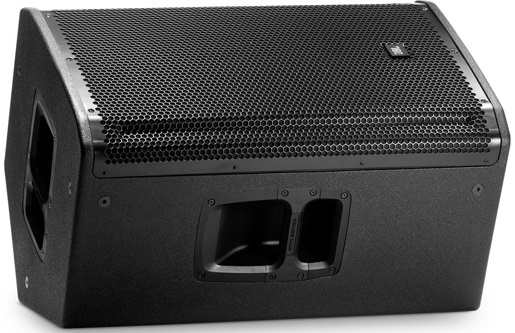

SRX815P

SRX815P

Max SPL Output 137 dB

Frequency Range (-10 dB) 36 Hz - 21 kHz
Frequency Response (-3 dB) 44 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 691 x 458 x 478 (mm)
27.20 x 18.03 x 18.82 (in)
Net Weight 28.6 kg (63 lb)

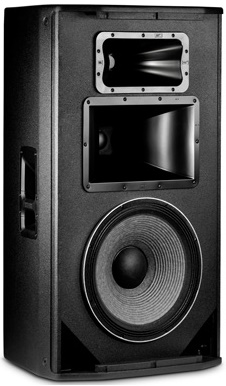

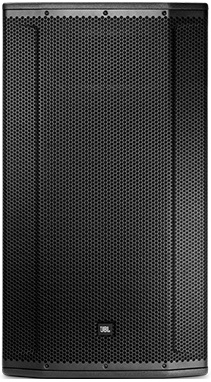

SRX835P

15" Three-Way
Bass Reflex Self-Powered

System Type Self powered 15”, three-way, bass-reflex
Max SPL Output     137 dB
Frequency Range (-10 dB)    33 Hz - 21 kHz
Frequency Response (-3 dB) 41 Hz - 20 kHz
Coverage Pattern 60° x 40°
Amplifier Design    Class D
Power Rating 2000 W Peak
Dimensions (H x W x D)984 x 544 x 476 (mm)
38.74 x 21.4 x 18.74 (in)
Net Weight 38.6 kg (85 lb)

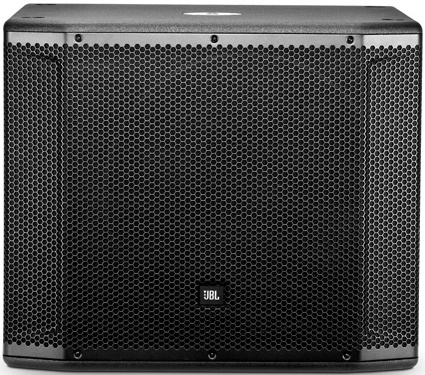

SRX818SP

SRX818SP

System Type Self powered 18”, subwoofer system
Max SPL Output 135 dB
Frequency Range (-10 dB) 29 Hz - 150 Hz
Frequency Response (-3 dB) 35 Hz - 120 Hz
Amplifier DesignClass D
Power Rating 1000 W Peak
Dimensions(H x W x D)575 x 684 x 683 (mm)
22.62 x 26.92 x 26.89 (in)

Net Weight 39.5 kg (87 lb

SRX828SP

SRX828SP
System Type Self powered dual 18”, subwoofer system
Max SPL Output     141 dB
Frequency Range (-10 dB)    29 Hz - 150 Hz
Frequency Response (-3 dB) 35 Hz - 120 Hz
Amplifier Design    Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 574 x 1205 x 681 (mm)
22.57 x 47.42 x 26.79 (in)
Net Weight 65.9 kg (145 lb

Unprecedented Control
A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.
